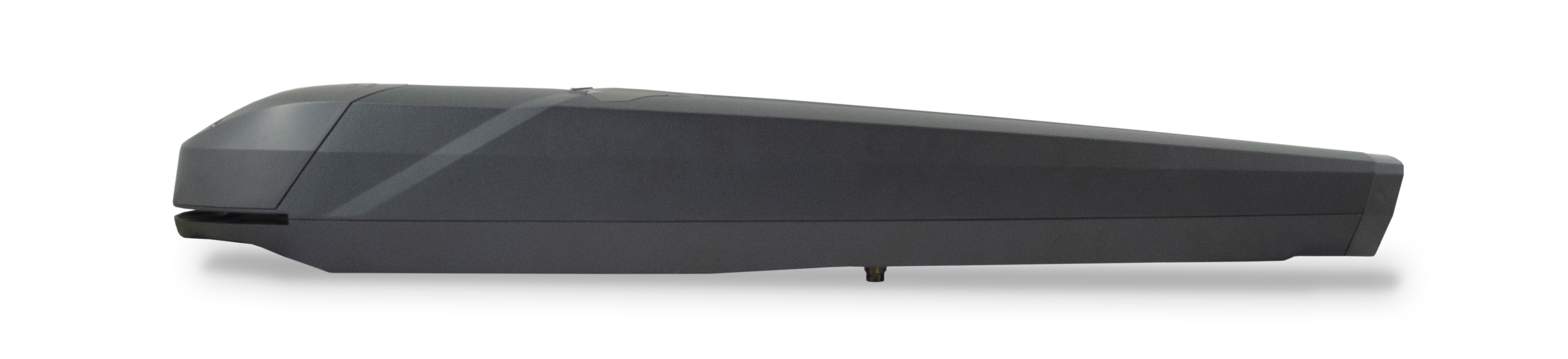

RHINO
Electromechanical irreversible actuator for swing gates intended for residential and semi-intensive use.
RHINO
Modern and elegant design with monobloc shell in die-cast aluminum. Extremely powerful and reliable thanks to the transmission system with a four-start worm screw and bevel gear. Version with integrated adjustable mechanical limit switches in closing and opening for an even quicker and cleaner installation, even without ground stops. Pre-wired capacitor on the motor and terminal block for connecting power supply cables. Top emergency release for quick and easy manual operation. Multi-position mounting plates included. Also available in 24V version with the option of power supply via backup battery (optional).
| Model | Version | Description | |
|---|---|---|---|
| RHINO | 230V-115V | irreversible | 400 Kg |
| RHINO 24 | 230V-115V | irreversible | 350 Kg |
| RHINO | RHINO 115 | RHINO 24 | |
|---|---|---|---|
| Version | 230V | 115V | 24V |
| Power supply | 230V ~ 50Hz | 115V ~ 60Hz | 24V Dc |
| Current | 1,2 - 1,7 A | 3,1 - 3,3 A | 0.6 - 6A |
| Motor power | 300 W | 300 W | 50 W |
| Capacitor | 8 μF | 15 μF | -- |
| Thermic protection | 150°C | 150°C | -- |
| Maximum thrust | 3200 N | 3200 N | 2700 N |
| IP class protection | 44 | 44 | 44 |
| Revolutions speed | 1400 rpm | 1700 rpm | 1600 rpm |
| Max opening angle | 110° deg | 110° deg | 110° deg |
| 90° standard opening time | 22" | 18" | 20" - 24" |
| Leaf's maximum weight | 400 Kg | 400 Kg | 350 Kg |
| Leafs maximum length | 3.5 m | 3.5 m | 3 m |
| Duty cycle | 40% | 40% | 80% |
