PTP45

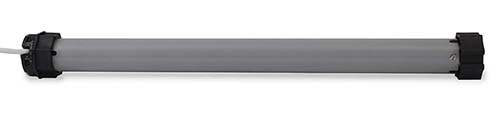

Tubular motor Ø 45 mm for roller blinds and awnings
PTP45
230V motor with electro-brake, powerful and noiseless
Mechanical limit-switches with progressive adjustment of opening and closing positions
Quick and easy installing on new and existing blinds and awnings
Complete with motor bracket and Ø 60 mm octagonal shaft adapter.

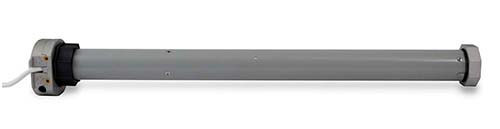

Version with manual override system also available (M models)
| Model | Power Supply | Version | Ø | Torque |
|---|---|---|---|---|
| PTP45 20 | 230V | Irreversible with electro-brake | 45 mm | 20 N |
| PTP45 30 | 230V | Irreversible with electro-brake | 45 mm | 30 N |
| PTP45 50 | 230V | Irreversible with electro-brake | 45 mm | 50 N |
| PTP45 50M | 230V | Irreversible with manual override system | 45 mm | 50 N |
| PTP45 20 | PTP45 30 | PTP45 50 | PTP45 50M | |
|---|---|---|---|---|
| Power supply | 230V | 230V | 230V | 230V |
| Thrust | 20 Nm | 30 Nm | 50 Nm | 50 Nm |
| Consumption | 0.78 A | 1.03 A | 1.23 A | 1.23 A |
| Motor power | 172 W | 235 W | 282W | 282W |
| Motor speed | 17 rpm | 17 rpm | 13 rpm | 13 rpm |
| Weight | 1.9 Kg | 2.3 Kg | 2.6 Kg | 3.2 Kg |
PTPQ01W
Concealed control unit with radio receiver
PTPTX1W
1-channel radio transmitter
PTPTX5W
5-channel radio transmitter
PTPR01WI
Olive adapter Ø 70 mm for sun awnings
PTPS03W
Wind-sun sensor for sun awnings
